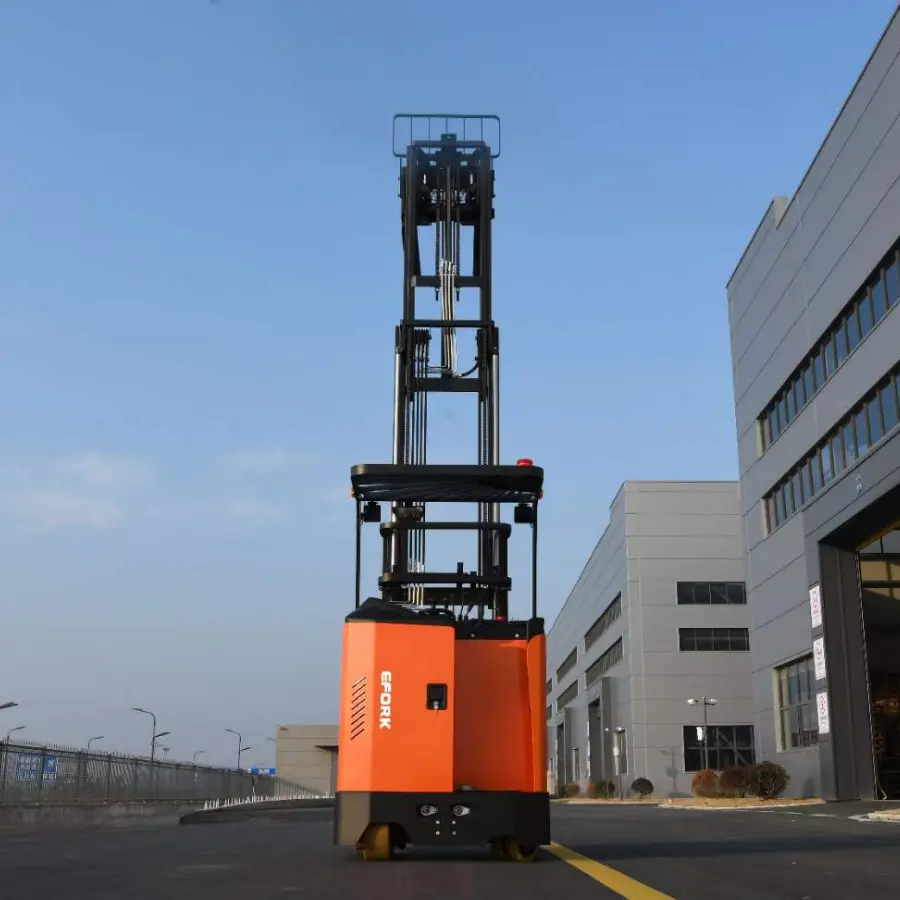

Reach Truck 3-12M Seated Reach Forklift Electric Narrow Aisle Mini Forklift Price 1.5t 2t 2.5t Reach Truck Lift
Maximize storage space and efficiency with our electric narrow aisle mini forklift. With a reach of 3-12 meters, you can easily reach high shelves while seated for added comfort. Choose between 1.5, 2, and 2.5 tons of lifting capacity for all your warehousing needs.
Product descriptions from the supplier
Product Description
Detailed Information
>Tight structure, flexible operation. Central fixed driving unit lowered center of gravity and good stability. suitable for big load and high lift.
>Mast reaches out, small turning radius, suit for different occasions with limited space.
>Full AC drive system,strong climbing ability, maintenance free, regenerative braking, good stability and high efficiency. No carbon brushes.
>Branded electric control system with multiple automatic protection systems to provide a higher level of functional safety.
Specification
| Features | 1.1 | Model | RLQ15-45S | RLQ25-45S | RLQ30-30 | |
| 1.4 | Power Type | Electric | Electric | Electric | ||
| 1.5 | Operation mode | stand-on | stand-on | stand-on | ||
| 1.6 | Load Capacity | Q(kg) | 1500 | 2500 | 3000 | |
| 1.7 | Load Center | C(mm) | 500 | 500 | 500 | |
| 1.8 | wheelbase | Y(mm) | 1383 | 1693 | 1770 | |
| 1.9 | Advance distance | L(mm) | 500 | 565 | 610 | |
| Weight | 2.1 | Total Weigh | kg | 2700 | 3200 | 3850 |
| Wheels, chassis | 3.1 | Wheel Type | PU | PU | PU | |
| 3.2 | Front Wheel | ∅×w(mm) | 267*114 | 267*114 | 280*135 | |
| 3.3 | Driving Wheel | ∅×w(mm) | 382*142 | 382*142 | 382*142 | |
| 3.4 | Balance wheel specification | ∅×w(mm) | 180*76 | 180*76 | 180*76 | |
| 3.5 | Wheel base(Front) | b10(mm) | 1081 | 1155 | 1330 | |
| Dimension | 4.1 | Closing height of the mast | h1(mm) | 2100 | 2360 | 2280 |
| 4.2 | Free lifting height | h2(mm) | 1500 | 1500 | 0 | |
| 4.3 | Lifting height | h3(mm) | 4500 | 4500 | 3000 | |
| 4.4 | Maximum height of mast during operation | h4(mm) | 5480 | 5480 | 3945 | |
| 4.5 | Top guard height | h14(mm) | 2280 | 2280 | 2280 | |
| 4.6 | Fork height when gantry retracted | h13(mm) | 35 | 45 | 45 | |
| 4.7 | Gantry/fork Angle front/rear | α/β（°） | 3/5 | 3/5 | 3/5 | |
| 4.8 | Body length (without fork/with fork) | l2(mm) | 1752/2405 | 2060/2550 | 2150/2640 | |
| 4.9 | Body width | b1(mm) | 1195 | 1270 | 1460 | |
| 4.10 | Fork size | s/e/l(mm) | 35/100/1070 | 45/125/1070 | 45/125/1070 | |
| 4.11 | Fork size adjustment | b5(mm) | 210-700 | 244-700 | 244-820 | |
| 4.12 | Minimum ground clearance(wheelbase center) | m2(mm) | 80 | 80 | 80 | |
| 4.13 | Main channel width，（1200 cross fork placement) | Ast(mm) | 2730 | 3042 | 3220 | |
| 4.14 | Minimum turning radius | Wa(mm) | 1680 | 1996 | 2200 | |
| Property | 5.1 | Travel speed, no load/full load | km/h | 8/7 | 8/7 | 8/7 |
| 5.2 | Lifting speed, no load/full load | m/s | 0.330/0.245 | 0.300/0.235 | 0.260/0.170 | |
| 5.3 | Descent speed, no load/full load | m/s | 0.260/0.325 | 0.270/0.315 | 0.270/0.315 | |
| 5.4 | Maximum climbing capacity, no load/full load | ％ | ≤10 | ≤10 | ≤8 | |
| 5.5 | Service brake | Electromagnetic braking | Electromagnetic braking | Electromagnetic braking | ||
| Electric machine | 6.1 | Drive motor power | kw | 4.5 | 6.5 | 8 |
| 6.2 | Boost motor power | kw | 6.3 | 6.3 | 12 | |
| 6.3 | Battery type | Lead-acid battery | Lead-acid battery | Lead-acid battery | ||
| 6.4 | Battery voltage/capacitance | V/Ah | 48V300Ah | 48V400Ah | 48V400Ah | |
| 6.5 | Charger | V/Ah | 48V/40A | 48V/50A | 48V/50A | |
| Other | 8.1 | Drive control mode | AC | AC | AC | |
| 8.2 | Driver's ear noise level according to EN12053 | dB(A) | 75 | 75 | 75 |
