1000 Kg 1500 Kg 2000 Kg Stand Type Full Electric Pallet Stacker With Pedal Counterbalanced Forklift for Warehouse
The Full Electric Pallet Stacker With Pedal Counterbalanced Forklift for Warehouse is the perfect solution for efficient and safe material handling. With a weight capacity of 1000 Kg, 1500 Kg, and 2000 Kg, this stand type pallet stacker is designed to handle heavy loads with ease. The pedal feature ensures smooth and effortless operation, while the counterbalanced forklift design ensures minimal risk of tipping. Improve productivity and safety in your warehouse with this top-of-the-line pallet stacker.
About this product
- Durable and Efficient Operation: This 1000 Kg, 1500 Kg, and 2000 Kg electric pallet stacker is designed for heavy-duty use in various industries, including construction, manufacturing, and food and beverage. With a robust AC motor and 24V 210Ah battery, it ensures smooth and efficient operation.
- Customizable and Versatile: The product is available in different colors, including orange, red, green, and customized options to suit your brand identity. It can be used in various settings, such as warehouses, factories, and retail stores.
- Reliable Safety Features: The standing counterbalanced type electric pallet stacker is designed with safety in mind, featuring a pedal counterbalanced system for easy operation and reduced fatigue. It also includes a 1-year warranty on core components.
- Compliance and Certification: This product meets international standards, with CE and ISO 9001 certifications, ensuring compliance with global regulations. It also comes with a machinery test report and video outgoing inspection for added assurance.
- Comprehensive After-Sales Support: Our team provides video technical support, online support, and spare parts after the warranty period, ensuring uninterrupted operation and minimizing downtime.
Product descriptions from the supplier
Product Description
Product details
| Name | Standing Counterbalanced Type Electric Pallet Stacker |
| Type | Electric Pallet Stacker |
| Color | Orange/Red/Green/Customized |
| Power type | Battery operated |
| Battery | 24V210Ah |
| Operator type | Standing type |
| Tire | PU |
| After Warranty Service | Video technical support, Online support, Spare parts |
| OEM | Aceptable |
| Certification | CE/CE/ISO9001 |
Please note: The price on the link is the price of CPDB with a load of 2T and a maximum height of 2.5m. If you need other load and lifting height, please contact customer service.

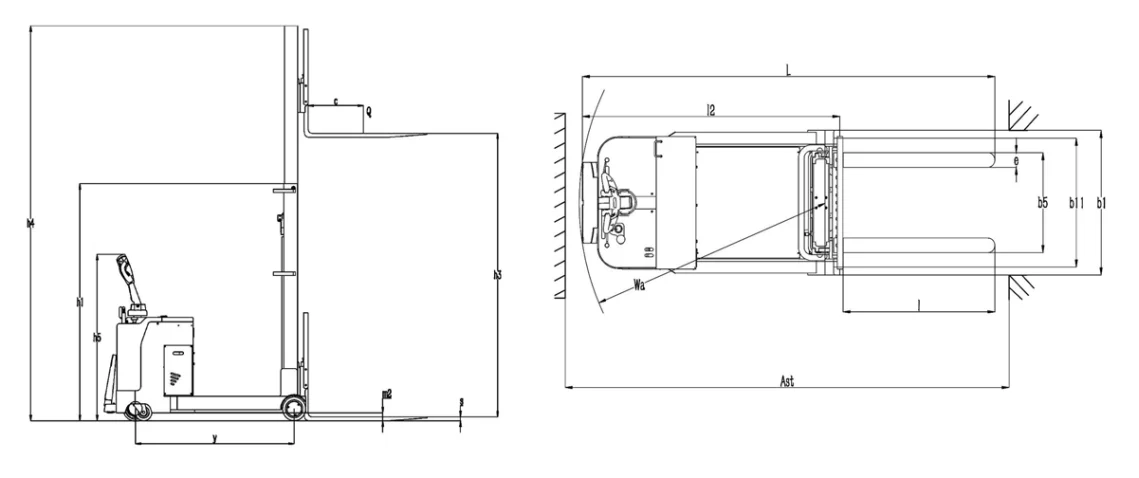

| counterbalanced type electric pallet stacker | ||||||
| characteristics | 1.1 | model | RLD10B-25 | RLD15B-25 | RLD20B-25 | |
| 1.2 | power | electric | electric | electric | ||
| 1.3 | operation manner | stand-on | stand-on | stand-on | ||
| 1.4 | load capacity | Q(kg) | 1000 | 1500 | 2000 | |
| 1.5 | load center | C(mm) | 500 | 500 | 500 | |
| 1.6 | front overhang | X(mm) | 157 | 157 | 157 | |
| 1.7 | wheelbase | Y(mm) | 1335 | 1435 | 1635 | |
| weight | 2.1 | overall weight | kg | 1700 | 1775 | 1890 |
| wheel,chassis | 3.1 | wheel type | Polyurethan | Polyurethan | Polyurethan | |
| 3.2 | front wheel | ∅×w(mm) | φ230*75 | φ230*75 | φ230*75 | |
| 3.3 | drive wheel | ∅×w(mm) | φ210*85 | φ210*85 | φ210*85 | |
| 3.4 | balance wheel | ∅×w(mm) | φ150*50 | φ150*50 | φ150*50 | |
| 3.5 | wheeltread front wheel | b10(mm) | 735 | 735 | 735 | |
| 3.6 | wheeltread rear wheel | b11(mm) | 955 | 955 | 955 | |
| dimension | 4.1 | lowered mast height | h1(mm) | 1840 | 1840 | 1840 |
| 4.2 | lifting height | h3(mm) | 2500 | 2500 | 2500 | |
| 4.3 | max.mast height | h4(mm) | 3417 | 3417 | 3417 | |
| 4.4 | overall length | L(mm) | 2814 | 2914 | 3114 | |
| 4.5 | overall width | b1(mm) | 983 | 983 | 983 | |
| 4.6 | fork dimension | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 | |
| 4.7 | fork spread | b5(mm) | 210-680 | 210-680 | 210-680 | |
| 4.8 | ground clearance | m2(mm) | 70 | 70 | 70 | |
| 4.9 | stack aisle width,pallet 1000×1200 | Ast(mm) | 3080 | 3180 | 3370 | |
| 4.10 | min.turning radius | Wa(mm) | 1645 | 1740 | 1940 | |
| performance | 5.1 | travel speed (unload/load) | km/h | 5/4 | 5/4 | 5/4 |
| 5.2 | lifting speed (unload/load) | m/s | 0.112/0.095 | 0.112/0.092 | 0.112/0.085 | |
| 5.3 | lowering speed (unload/load) | m/s | 0.094/0.110 | 0.094/0.115 | 0.096/0.123 | |
| 5.4 | max. gradeability(unload/load) | % | 8/5 | 8/5 | 6/4 | |
| 5.5 | brake | electromagnetic | electromagnetic | electromagnetic | ||
| motor | 6.1 | driving motor power | kw | 1.5 | 1.5 | 2.5 |
| 6.2 | lifting motor power | kw | 2.2 | 2.2 | 2.2 | |
| 6.3 | battery type | lead-acid | lead-acid | lead-acid | ||
| 6.4 | battery voltage/capacitance | V/Ah | 24V210Ah | 24V210Ah | 24V210Ah | |
| charger | 6.5 | charger | V/A | 24V30A | 24V/30A | 24V/30A |
| others | 7.1 | drive control mode | AC | AC | AC | |
