Durable 3000KG Electric Forklift Counterbalanced Forklift 4-wheel Electric Forklift
Designed to safely and efficiently move heavy loads up to 3000KG. - Utilizes an electric motor for reliable and consistent power. - Perfect for indoor and outdoor use with its counterbalanced design. - Features a sturdy 4-wheel construction for stability and durability. - A reliable and versatile option for handling heavy loads in various settings.
Product descriptions from the supplier
Product Paramenters
| Characteristic | 1.1 | Model | CPD16 | CPD20 | CPD25 | CPD30 | |
| 1.2 | Power Type | Electric | Electric | Electric | Electric | ||
| 1.3 | Operation Type | Seated Type | Seated Type | Seated Type | Seated Type | ||
| 1.4 | Load Capacity | Q(kg) | 1600 | 2000 | 2500 | 3000 | |
| 1.5 | Load Center | C(mm) | 500 | 500 | 500 | 500 | |
| 1.6 | Front Overhang | X(mm) | 447 | 447 | 495 | 495 | |
| 1.7 | Wheelbase | Y(mm) | 1460 | 1460 | 1600 | 1600 | |
| Weight | 2.1 | Total Weight (With Battery) | kg | 2850 | 3260 | 4210 | 4410 |
| Wheels, Chassis |
3.1 | Wheel Type | Inflatable Tyre | Solid Tyre | Solid Tyre | Solid Tyre | |
| 3.2 | Front Wheel | 6.50-10 | 6.50-10 | 23×9-10 | 23×9-10 | ||
| 3.3 | Rear Wheel | 5.00-8 | 5.00-8 | 18×7-8 | 18×7-8 | ||
| 3.4 | Front Wheelbase | b10(mm) | 910 | 910 | 970 | 970 | |
| 3.5 | Rear Wheelbase | b11(mm) | 930 | 930 | 980 | 980 | |
| Dimensions | 4.1 | Mast Lowered Height | h1(mm) | 2095 | 2095 | 2095 | 2095 |
| 4.2 | Free Lift | h2(mm) | 80 | 80 | 80 | 80 | |
| 4.3 | Lift Height | h3(mm) | 3000 | 3000 | 3000 | 3000 | |
| 4.4 | Height, mast entended | h4(mm) | 4010 | 4010 | 4150 | 4150 | |
| 4.5 | Height of Overhead Guards | h14(mm) | 2190 | 2190 | 2185 | 2185 | |
| 4.6 | Fork Clearance when Mast Lowered | h13(mm) | 40 | 40 | 45 | 45 | |
| 4.7 | Mast tilting angle Front/Rear | ° | 6/10 | 6/10 | 6/12 | 6/12 | |
| 4.8 | Overall Length (With Fork) | L1(mm) | 3400 | 3400 | 3600 | 3600 | |
| 4.9 | Overall Width (Without Fork) | L2(mm) | 2330 | 2330 | 2530 | 2530 | |
| 4.10 | Overall Width | b1(mm) | 1105 | 1105 | 1200 | 1200 | |
| 4.11 | Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | 45/125/1070 | |
| 4.12 | Fork Spread | b5(mm) | 244-1042 | 244-1042 | 250-1070 | 250-1070 | |
| 4.13 | Min. Ground Clearance | m2(mm) | 130 | 130 | 130 | 130 | |
| 4.14 | Aisle Width for Pallet 1000*1200 (1200 placed across forks) |
Ast(mm) | 3857 | 3857 | 4015 | 4015 | |
| 4.15 | Aisle Width for Pallet 1200*1000 (1000 placed across forks) |
Ast(mm) | 4015 | 4015 | 4170 | 4170 | |
| 4.16 | Min. Turning Radius | Wa(mm) | 2090 | 2090 | 2200 | 2200 | |
| Performance | 5.1 | Max.Travel Speed (Unladen/Laden) | km/h | 12/11 | 12/11 | 12/11 | 12/11 |
| 5.2 | Lifting Speed (Unladen/Laden) | m/s | 0.221/0.205 | 0.214/0.196 | 0.215/0.210 | 0.212/0.193 | |
| 5.3 | Lowering Speed (Unladen/Laden) | m/s | 0.260/0.350 | 0.240/0.365 | 0.240//0.365 | 0.240/0.365 | |
| 5.4 | Max. gradeability (Unladen/Laden) | % | 20/15 | 20/15 | 20/12 | 20/12 | |
| 5.5 | Service Brake | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
| Motor, Charger | 6.1 | Drive Motor | kw | 8AC | 8AC | 11AC | 11AC |
| 6.2 | Lift Motor | kw | 8.6AC | 8.6AC | 12AC | ||
| 6.3 | Battery Type | Lead Acid | Lead Acid | Lead Acid | Lead Acid | ||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 48V260Ah | 60V260Ah | 60V260Ah | 80V300Ah | |
| 6.5 | Charger | V/A | 48V/50A | 60V/60A | 60V/60A | 80V/50A | |
| 6.6 | Battery Weight | kg | 645 | 710 | 730 | 850 | |
| Other | 7.1 | Type of Drive Control | AC | AC | AC | AC | |
| 7.2 | Sound level at the driver's ear acc. to EN12053 | dB(A) | 75 | 75 | 75 | 75 | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | |||||||

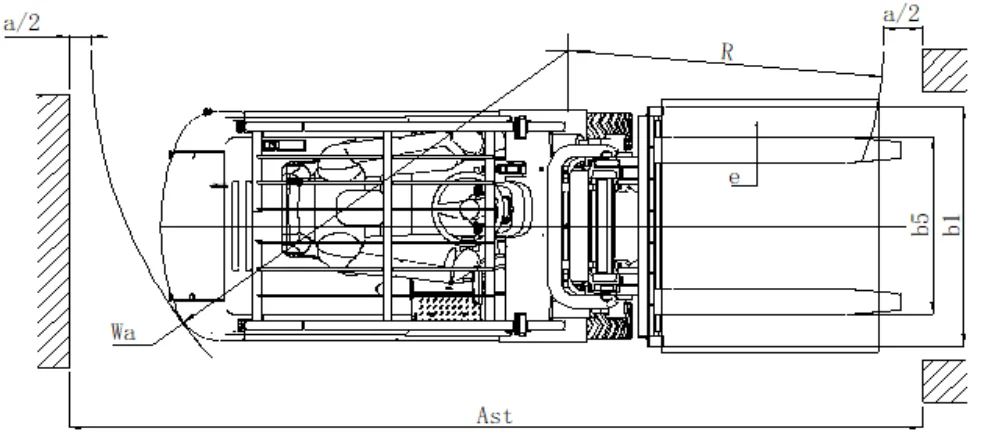

Product structure diagram
Features
Streamlined design : new design reduces air friction to improve the speed and safety.
Excellent performance :
48V AC control tec , and Italian SME controller with industry advanced hydraulic system, protection level better than or equal to IP4 level Q above, to ensure performance improved while significantly reducing energy consumption.
The H-type bridge box with compact structure improves the transmission efficiency, reduces the noise, simplifies the structure and is beneficial to the realization of lightweight. Large capacity battery offers longer running time.
Maintenance & Comfort enhancement: Open cover design makes it easy maintenance.
Remove counter weight cover, easy replace the battery；
Remove the left cover, easy repair electronic control;
All digit instrumentation system makes it easy diagnose and repair.
Ergonomic design of the operation panel, adjustable cover-type seat, compact lifting masts ensures a higher degree of comfort for the operator throughout the operation.
