RONLI Articulated Forklift Narrow 1.5ton 2ton Mini Forklift Articulated with Full AC System and 12500mm Lifting Height
Maximize productivity and efficiency with our RONLI Articulated Forklift. Its full AC system and 12500mm lifting height ensure maximum performance and precision. Perfect for narrow spaces, this 1.5ton and 2ton mini forklift is an essential tool for any industrial setting.
About this product
- Ultra-Narrow Aisle Operation: This forklift is designed for efficient and space-saving operation in narrow aisles, making it ideal for warehouses and storage facilities with limited space. The user can navigate through tight spaces with ease, increasing productivity and reducing congestion.
- Heavy-Duty Capacity: With a loading capacity of 2000kg and a lift height of 5-12 meters, this forklift can handle heavy loads with precision and ease. The user can rely on it to handle demanding tasks with confidence.
- Energy Efficiency: Powered by an 80V 500Ah lithium battery, this forklift provides a reliable and efficient source of energy for extended operation. The user can enjoy uninterrupted productivity without worrying about frequent battery replacements.
- Multi-Location Availability: With showrooms located in various countries, including Canada, Turkey, the UK, and others, this forklift is easily accessible to customers worldwide. The user can purchase and receive their forklift from a location nearest to them, ensuring seamless logistics and support.
- Comprehensive Warranty and Support: This forklift comes with a 1-year warranty on core components and a comprehensive warranty on the entire machine. The user can trust that their investment is protected, and any issues will be promptly addressed by the manufacturer's dedicated support team.
Product descriptions from the supplier
Product Description
ULTRA NARROW AISLE OPERATION Can work within 2.2M aisle width RONLIFT20-6M articulated forklift truck
Specification
| Specification for Articulated forklift RONLIFT20 | ||||
| standard | ||||
| 1.1 | Manufacturer | RONLI | RONLI | |
| 1.2 | Model | RONLIFT20 | RONLIFT20H | |
| 1.3 | Power Type | battery | battery | |
| 1.4 | Operation Type | Seated | Seated | |
| 1.5 | Rated Capacity | Q(kg) | 2000 | 2000 |
| 1.6 | Load Center | C(mm) | 600 | 600 |
| 1.8 | Front Overhang | x(mm) | 285 | 285 |
| 1.9 | Wheelbase | y(mm) | 1720 | 1720 |
| weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 6900 | 7200 |
| wheel | ||||
| 3.1 | Wheel type,drive side/load side | Solid rubber | Solid rubber | |
| 3.2 | Tyre size,load side | mm | Φ457×178 | Φ457×178 |

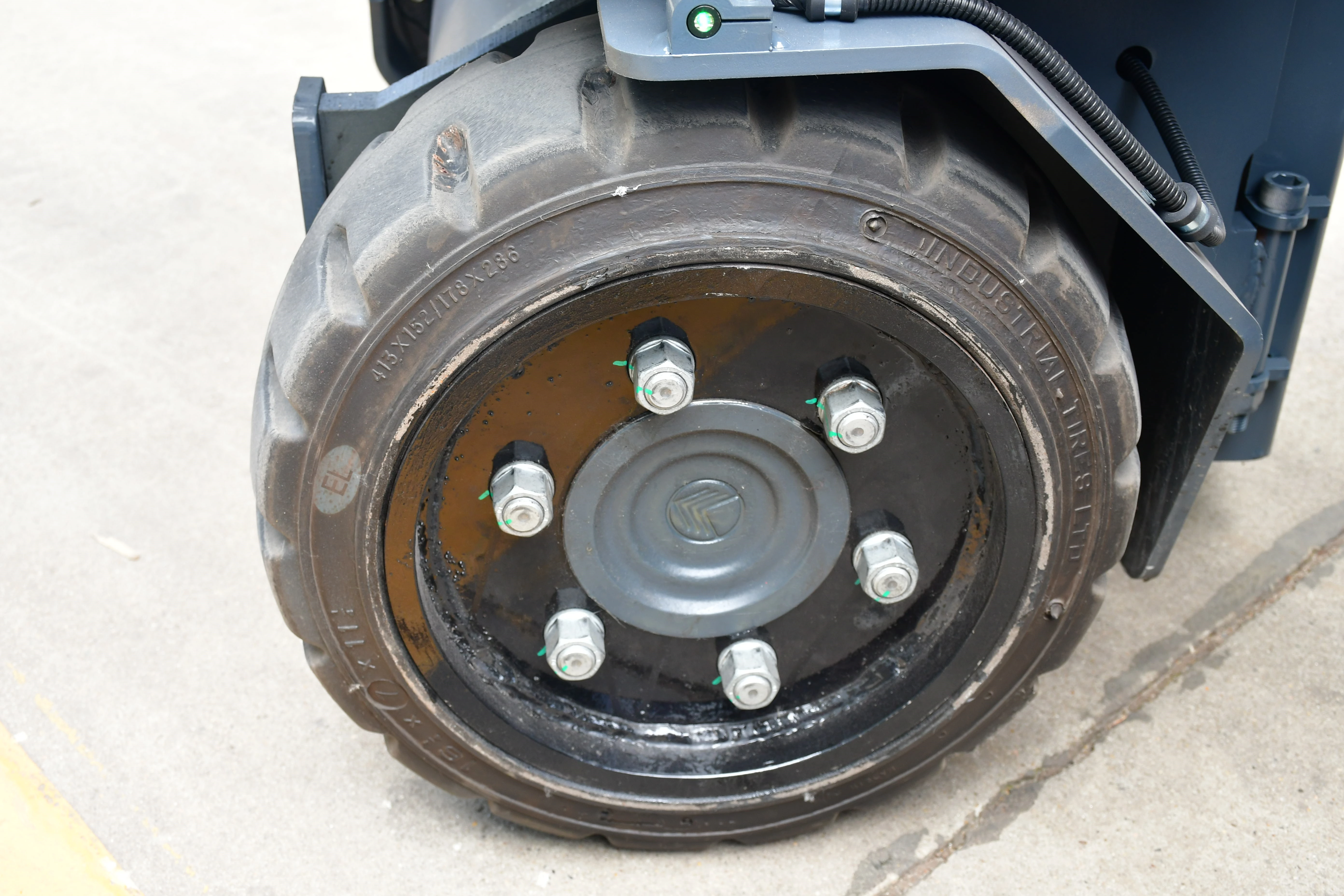

| 3.3 | Tyre size, drive side | mm | Φ415×178 | Φ415×178 |
| 3.5 | Wheel quantity,front/rear(X= drive) | 2x/2 | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 800 | 800 |
| 3.7 | Wheel tread,load side | b11(mm) | 1090 | 1220 |
| size | ||||
| 4.1 | Tilt of fork, Forward/Backward | α/β(°) | 1/3 | 1/3 |
| 4.2 | Height of mast closed | h1(mm) | according to mast sheet | according to mast sheet |
| 4.3 | Full free lifting height | h2(mm) | according to mast sheet | according to mast sheet |
| 4.4 | Rated cpacity Lifting height | h3(mm) | 3300 | 3300 |
| Lifting height | h3(mm) | 4600～10000 | 4600～10000 | |
| 4.5 | Height of mast extend | h4(mm) | according to mast sheet | according to mast sheet |
| 4.6 | overhead guard height | h6(mm) | 2250 | 2250 |
| 4.7 | Seat height | h7(mm) | 1230 | 1230 |
| 4.19 | overall length | L1(mm) | 3830 | 3830 |
| 4.20 | Length to the fork face | L2(mm) | 2730 | 2730 |
| 4.21 | overall width | b1/b2(mm) | 980/1260 | 980/1400 |
| 4.22 | fork dimentions | l/e/s(mm) | 1100/100/50 | 1100/100/50 |
| 4.23 | Installation level | Ⅱ | Ⅱ | |
| 4.24 | fork carriage width | b3(mm) | 990 | 990 |
| 4.25 | Width across forks | b5(mm) | 250～890 | 250～890 |
| 4.26 | side move distance | mm | ±100 | ±100 |
| 4.31 | Ground clearance of mast | m1(mm) | 70 | 70 |
| 4.32 | Ground clearance of body | m2(mm) | 100 | 100 |
| 4.34 | min Stacking aisle width(pallet800x1200 depth) | Ast(mm) | 1900 | 2100 |
| efficiency aisle≥ (pallet to pallet distance) | mm | 2000 | 2200 | |
| rack to rack distance ≥ | mm | 2200 | 2400 | |
| min Stacking main aisle width(pallet 800x1200 depth ) | mm | 2650 | 2650 | |
| 4.36 | Turning radius | Wa(mm) | 2200 | 2200 |
| function | ||||
| 5.1 | Drive speed,load/unload | km/h | 13 | 13 |
| 5.2 | Lift speed.load/unload | mm/s | 400/420 | 400/420 |
| 5.3 | Lower speed, load/unload | mm/s | 280/200 | 280/200 |
| 5.4 | Max. climbing ability | %(tanθ ) | 12/13 | 12/13 |
| 5.10 | Brake type | mechanical hydraulic | mechanical hydraulic | |
| driving | ||||
| 6.1 | Driving motor power (S2-60min) | kw | AC18.5 | AC18.5 |
| 6.2 | Lifting motor power (S3-15%) | kw | AC15 | AC15 |
| 6.4 | Battery voltage/capacity | V/Ah | 48/900 | 48/900 |
| 6.5 | Battery weight | kg | 1400 | 1400 |
| 6.6 | Steering system | Hydraulic | ||
